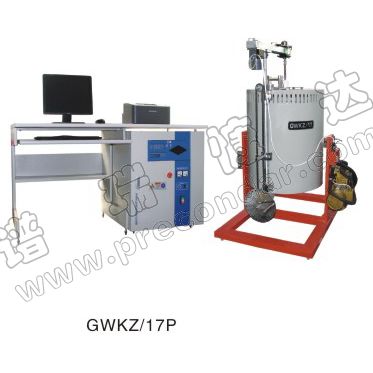

GWKZ / 17p high temperature slag resistant experimental furnace
The equipment is used to measure the slag corrosion resistance of refractory products. The equipment is manufactured in accor
The equipment is used to measure the slag corrosion resistance of refractory products. The equipment is manufactured in accor
The equipment is used to measure the slag corrosion resistance of refractory products. The equipment is manufactured in accordance with the requirements of method 2 of GB / T 8931 test method for slag resistance of refractories. The furnace body is a round and overturnable structure. According to the electric swing device, it has good heat preservation performance and remarkable energy saving effect. The separated bottom base brick is adopted for easy maintenance. It has the advantages of simple operation, high precision of temperature control, automatic completion of heating and heat preservation, and fault protection function.
使用温度 Working temperature(℃) | 1600 |
炉膛尺寸 Hearth size(mm) | φ100×300 |
升温速率 Heating-up Rate(℃/min) | 0~8 |
炉膛气氛 Atmosphere of the furnace | Air、N₂、Ar |
气体流量 Air flow(L/min) | 0~10 |
保温温度精度 Temperature accuracy in soaking(℃) | ±2 |
试样尺寸 Size of sample(mm) | φ30×40 |
电源 Power supply | 380V 50Hz 13kW |
重量 Weight(kg) | 350 |
