KRZ series thermal shock resistance testing machine krz-f01
Krz-f01 air quenching and thermal shock resistance testing machine for refractory productsMeet the requirements of relevant s
Krz-f01 air quenching and thermal shock resistance testing machine for refractory productsMeet the requirements of relevant s

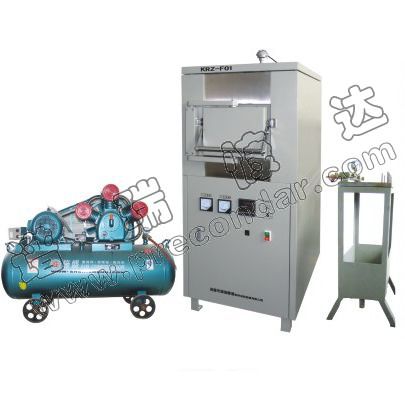

Krz-f01 air quenching and thermal shock resistance testing machine for refractory products
Meet the requirements of relevant standards, automatic temperature control, semi-automatic process control and record the number of thermal shock. Among them, krz-s series equipment is manufactured according to Yb / T 376.1 test method for thermal shock resistance of refractory products (water quenching method); krz-f series equipment is manufactured according to Yb / T 376.2 test method for thermal shock resistance of refractory products (air quenching method); krz-l series equipment is manufactured according to Yb / t 376.2 test method for thermal shock resistance of refractory products (air quenching method) 376.3 "test method for thermal shock resistance of refractory products (water quenching crack determination method)" for equipment requirements. The sample chuck is made of stainless steel.
型号/参数 Model/specification | KRZ-F01 |
使用温度 Working temperature(℃) | 1200 |
最高使用温度 Max.temperature(℃) | 1350 |
炉膛尺寸 Hearth size(mm) | 320×240×190 |
试样个数 Quantity of sample | 3 |
主机尺寸 Size of mainframe(mm) | 670×600×1530 |
电源 Power supply | 380V 50Hz 10kW |
重量 Weight(kg) | 300 |
