Unshaped Refractories Testing

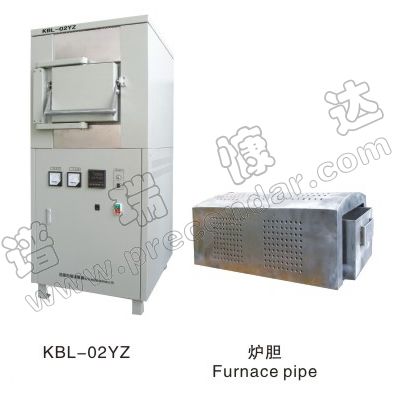

KBL-02 anti cracking experimental furnace

The equipment is used for anti burst test of dense refractory castable below 1000 ℃. The equipment is made according to the r

The equipment is used for anti burst test of dense refractory castable below 1000 ℃. The equipment is made according to the requirements of national standard Yb / T 4117 "test method for anti burst of dense refractory castables", and the control system has excellent performance.

 使用温度 Working temperature(℃)800~1300
 炉膛尺寸 Hearth size(mm)400×200×210
 升温速率 Heating-up Rate(℃/min)0~20
 保温温度精度 Temperature accuracy in soaking(℃)±2
 电源 Power supply  380V 50Hz 16kW
 主机尺寸 Size of mainframe(mm)900×630×1600
 重量 Weight(kg)400
