RPZ series automatic thermal dilatometer
This instrument is used to measure the thermal expansion of refractory products. It is manufactured according to the requirem

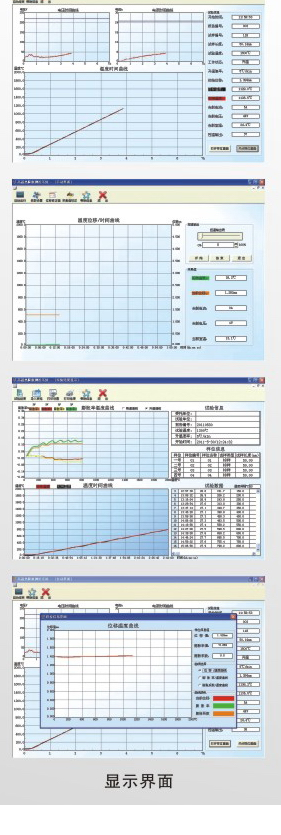

This instrument is used to measure the thermal expansion of refractory products. It is manufactured according to the requirements of GB / T 7320 "thermal expansion test method". Compact structure, convenient operation, beautiful and applicable. Automatic control, friendly interface and high temperature control precision. The equipment can test multiple samples at the same time.
| 型号/参数 Model/specification | RPZ15-1 | RPZ15-2 | RPZ15-4 | RPZ17-1 | RPZ17-2 | RPZ17-4 |
| 使用温度 Working temperature(℃) | 1600 | |||||
| 升温速率 Heating-up rate(℃/min) | 0～8 | |||||
| 控温精度 Temperature control accuracy(℃) | ±2 | |||||
| 炉膛尺寸 Hearth size(mm) | φ180×180 | |||||
| 试样个数 Quantity of sample | 1 | 2 | 2～4 | 1 | 2 | 2～4 |
| 试样尺寸 Size of sample(mm) | φ6,φ10×50,φ20×100,φ36,φ50 | |||||
| 变形测量范围 Deformation range(mm) | 0～5 | |||||
| 分辨率 Resolution(mm) | 0.001 | |||||
| 电源 Power supply | 380V 50Hz 5kW | |||||
| 重量 Weight(kg) | 600 | |||||
