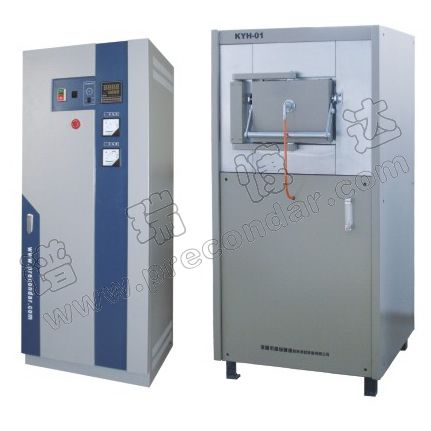

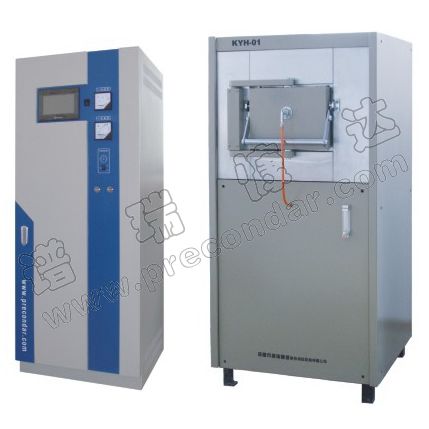

KYH series oxidation resistance experimental furnace
The equipment is mainly used to test the high temperature oxidation resistance of carbon containing refractories or inorganic
The equipment is mainly used to test the high temperature oxidation resistance of carbon containing refractories or inorganic
The equipment is mainly used to test the high temperature oxidation resistance of carbon containing refractories or inorganic nonmetallic materials. The equipment is manufactured according to the national standard GB / T 17732 test method for dense shaped carbon containing refractory products. The control part is an intelligent controller, which realizes the automatic control of temperature rise, heat preservation, test data acquisition, printing, shutdown and accident alarm; the operation is simple and convenient, and the safety facilities are complete.
型号/参数 Model/specification | KYH-01 |
使用温度 Working temperature(℃) | 1600 |
短时最高温度 Max.temperature(℃) | 1650 |
炉膛尺寸 Hearth size(mm) | 320×240×190 |
升温速率 Heating-up rate(℃/min) | 0~8 |
保温温度精度 Temperature accuracy in soaking(℃) | ±2 |
流量范围 Range of air flow(L/min) | 1~10 |
主机尺寸 Size of mainframe(mm) | 800×700×1700 |
电源 Power supply | 380V 50Hz 13kW |
重量 Weight(kg) | 600 |
