Unshaped Refractories Testing

LBY series rheometer

Lby series rheometer is used to measure the rheological parameters of fresh refractory castable (unshaped refractory) in the

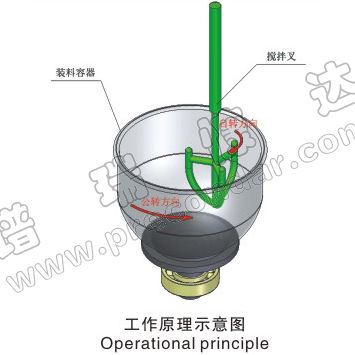

Lby series rheometer is used to measure the rheological parameters of fresh refractory castable (unshaped refractory) in the flow state. The main test parameters are: plastic viscosity index (the torque of the mixing fork corresponds to the slope of the speed of the mixing fork); the yield stress index (the torque of the mixing fork corresponds to the intercept of the speed of the mixing fork on the torque shaft).

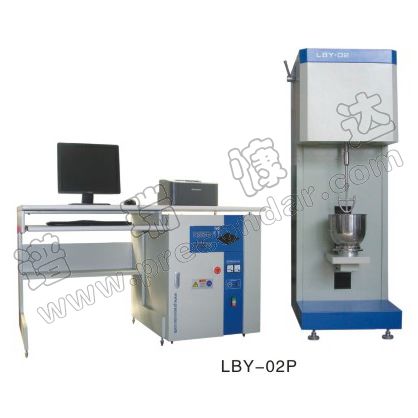

型号/参数 Model/SpecificationLBY-02P
 最大装样量 Max.cubage(g)5000
 最大扭矩 Max.torsion(Nm)20
 最高转速 Max.rotation speed(r/min)0~100,0~200,0~300,0~400
 电源 Power supply380V 50Hz 1.5kW
 主机尺寸 Size of mainframe(mm)750×560×1560
 重量 Weight(kg)320
