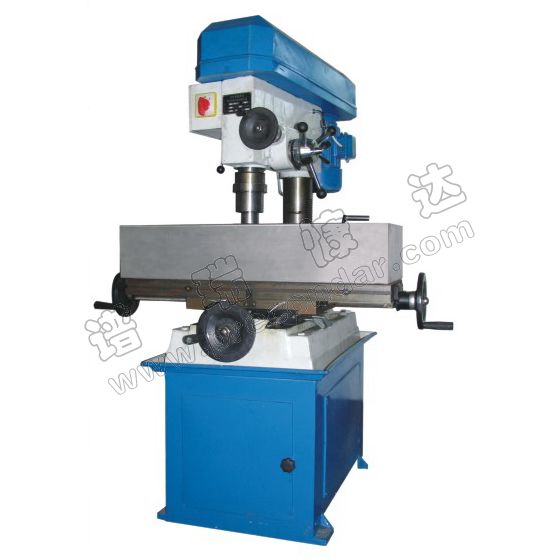

ZMJ-01 multifunctional drilling and grinding prototype
Zmj-01 multi-functional drilling and grinding prototype is a special equipment for drilling soft, creep and expansion samples
Zmj-01 multi-functional drilling and grinding prototype is a special equipment for drilling soft, creep and expansion samples and for grinding and polishing the end faces of various samples. The equipment is equipped with diamond bit and grinding wheel, and samples are prepared manually.
| 磨轮直径 Diameter of abrasive wheel(mm) | φ100 |
| 磨轮转速 Rotated speed of abrasive wheel(r/min) | 250～3200 |
| 最大磨削试样尺寸 Max.abrasiving size(mm) | φ80×80 |
| 试样磨削平行度 Sample parallel degree(mm) | 0.1 |
| 主轴形程 Principal axis range(mm) | 90 |
| 工作台尺寸 Workbench size(mm) | 500×200 |
| 工作台形程 Workbench range(mm) | 250×140 |
| 主机尺寸 Size of mainframe(mm) | 630×520×1210 |
| 电源 Power supply | 三相四线 380V 50Hz 0.7kW |
| 净重 Weight(kg) | 200 |
