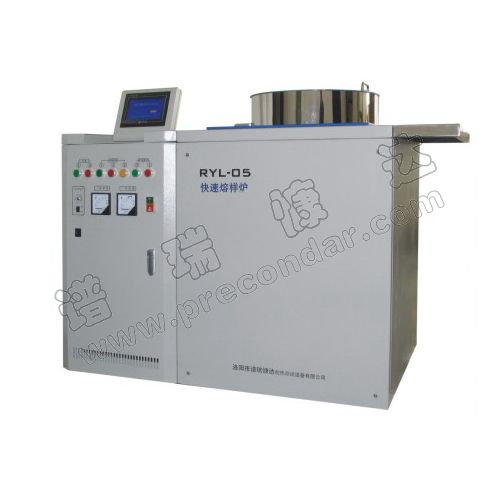

Rapid melting furnace for RYL-05 X-ray fluorescence analyzer
The special fast melting furnace for X-ray fluorescence analyzer is mainly used for melting sample pieces of X-ray fluorescen

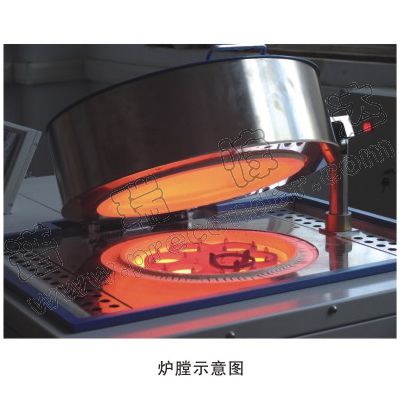

The special fast melting furnace for X-ray fluorescence analyzer is mainly used for melting sample pieces of X-ray fluorescence analyzer. With carbon rod heating, the sample tray can rotate and the furnace body can swing, which can make the sample form vortex motion in the process of melting, so as to achieve good sample melting purpose.
| 工作温度 Working temperature(℃) | 0～1170 |
| 最高温度 Max.temperature(℃) | 1200 |
| 硅碳棒发热体 SiC heating element(mm) | φ16×250×175 |
| 功率 Power(kW) | 8 |
| 控温精度 Temperature accuracy in soaking(℃) | ±2 |
| 升温速度 Heating-up rate(℃/min) | 0～30 |
| 托盘转速 Rotation speed of pallet(r/min) | 15(adjustable) |
| 炉体摆角 Swing degree of furnace body | 30°(25～35°,adjustable) |
| 炉体摆频 Shake frequency of furnace body(r/min) | 4（2～6,adjustable） |
| 炉体极限停顿时间 limit pause time(s) | 4（1～20,adjustable） |
| 熔样温度 Temperature of melting sample(℃) | 0～1170可选optional |
| 前静置时间 Pre-rest time(min) | 0～99可选optional |
| 摆动时间 Swing time(min) | 0～99可选optional |
| 后静置时间 latter rest time(min) | 0～99可选optional |
| 运行极限时间 limit time of working(h) | 99 |
| 熔样数量 Quantity of melting sample | 3,4,6位可选 |
| 机体尺寸 Dimension of furnace(mm) | 1230×810×1260 |
| 电源 Power supply | 三相380V、16A 单相220V、40A three phase 380V 16A,single phase 220V 40A |
